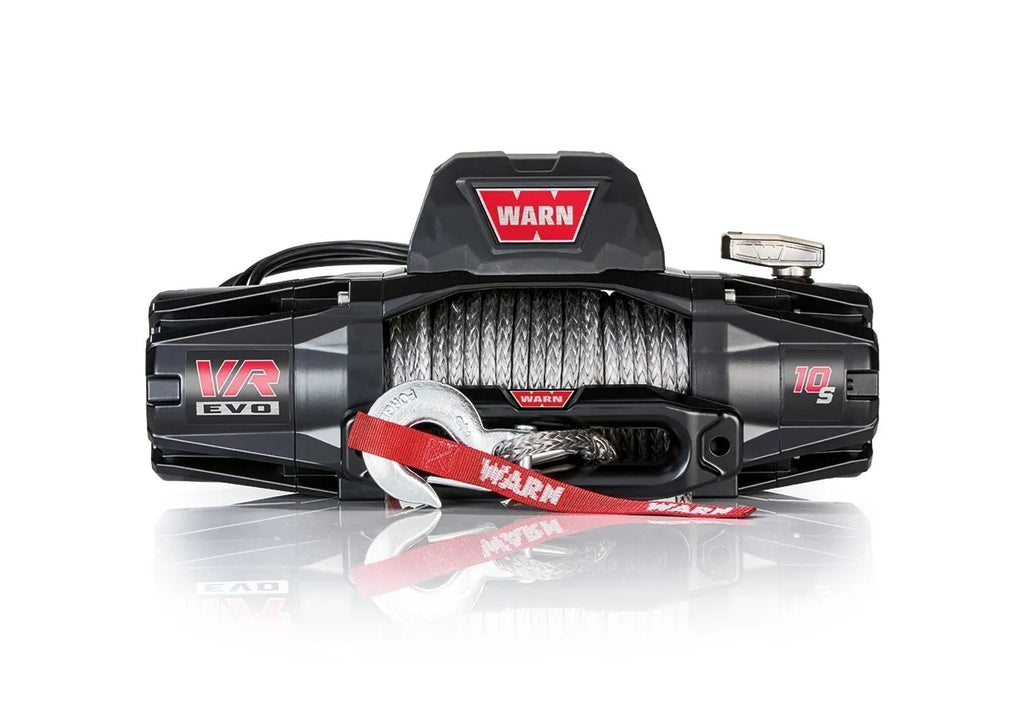

VR EVO 10-S WINCH - 103253

  • Sale
  • Regular price $864.00
Shipping calculated at checkout.


Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility.

With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
IP68-rated waterproof winch construction keeps the elements out
High-performance Albright contactor delivers maximum reliability
Control packs can be relocated for low-profile installations
Durable, one-piece cast-aluminum tie-plate for added strength and durability

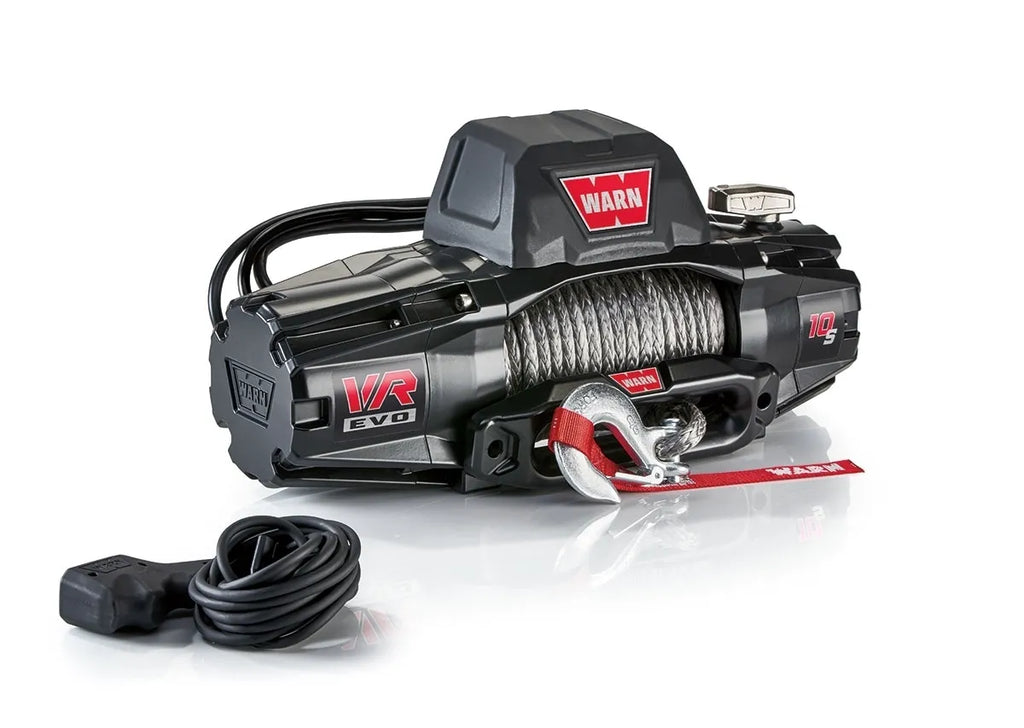

Two-in-one remote with wired AND wireless options for ease of use and versatility
Limited lifetime warranty for mechanical parts and 7 years on the electrical

TYPE- Electric
RECOMMENDED USE- Vehicle Recovery
MOUNT TYPE- Vehicle Mount
VOLTAGE- 12 Volt DC
ELECTRICAL CONTROL TYPE- Albright Contactor
MOTOR TYPE- Series Wound
DRIVE GEAR TYPE- 3-Stage Planetary
GEAR REDUCTION RATIO- 218:1
FREE SPOOLING- Yes
BRAKE- TYPE Spring
LINE DIAMETER (IN-) 3/8 Inch
LINE LENGTH (FT)- 90
LINE MATERIAL- Synthetic
FAIRLEAD TYPE- Hawse
REMOTE TYPE- 2 in 1 plug in remote with wireless capability
MOUNTING HOLE QUANTITY- 4

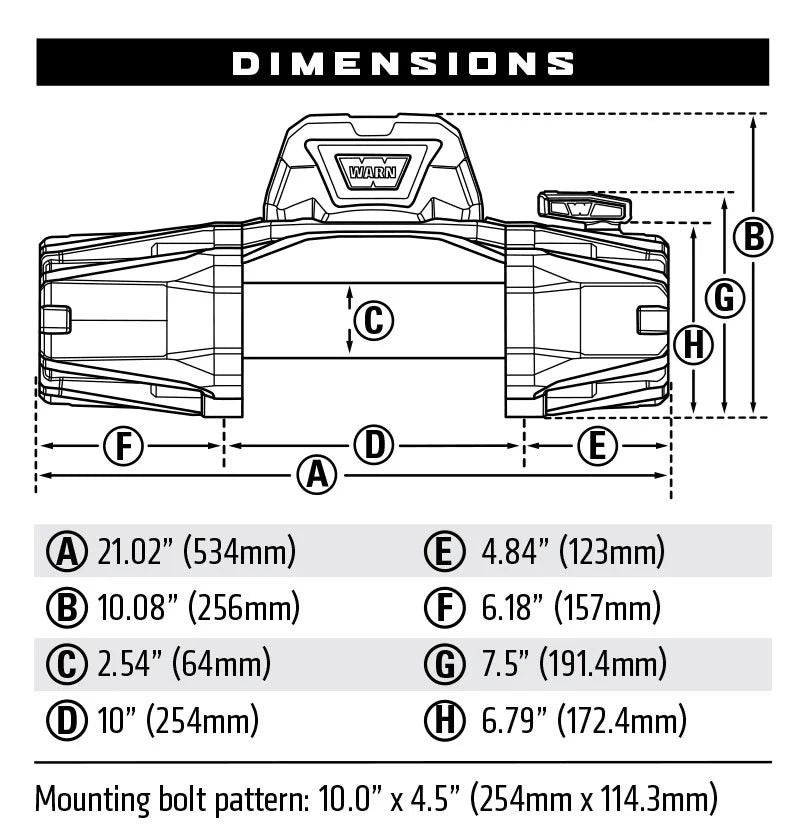

MOUNTING PATTERN LENGTH (IN-) 10 Inch
MOUNTING PATTERN WIDTH (IN)- 4-1/2 Inch
INCLUDES MOUNTING HARDWARE- Yes
COLOR- Black
DRUM MATERIAL- Steel
MAX LINE PULL/ LINE SPEED- 10,000 pound/5.2 feet per minute
MAX AMP DRAW/ LINE PULL- 358 Amps / 10,000 lbs
