Warn

VR EVO 12-S WINCH - 103255

  • Sale
  • Regular price $976.00
Shipping calculated at checkout.


Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

• IP68-rated waterproof winch construction keeps the elements out

• High-performance Albright contactor delivers maximum reliability

• Control packs can be relocated for low-profile installations

• Durable, one-piece cast-aluminum tie-plate for added strength and durability

• Two-in-one remote with wired AND wireless options for ease of use and versatility

• Limited lifetime warranty for mechanical parts and 7 years on the electrical

TYPE- Electric
RECOMMENDED USE- Vehicle Recovery
MOUNTING LOCATION- Vehicle Mounted
VOLTAGE- 12 Volt DC
ELECTRICAL CONTROL TYPE- Albright Contactor
MOTOR TYPE- Series Wound
DRIVE GEAR TYPE- 3-Stage Planetary
GEAR REDUCTION RATIO- 234:1
FREE SPOOLING- Yes
BRAKE TYPE- Spring
LINE DIAMETER (IN)- 3/8 Inch
LINE MATERIAL- Synthetic
LENGTH (FT)- 90
FAIRLEAD TYPE- Hawse
REMOTE TYPE- 2 in 1 plug in remote with wireless capability
MOUNTING HOLE QUANTITY- 4

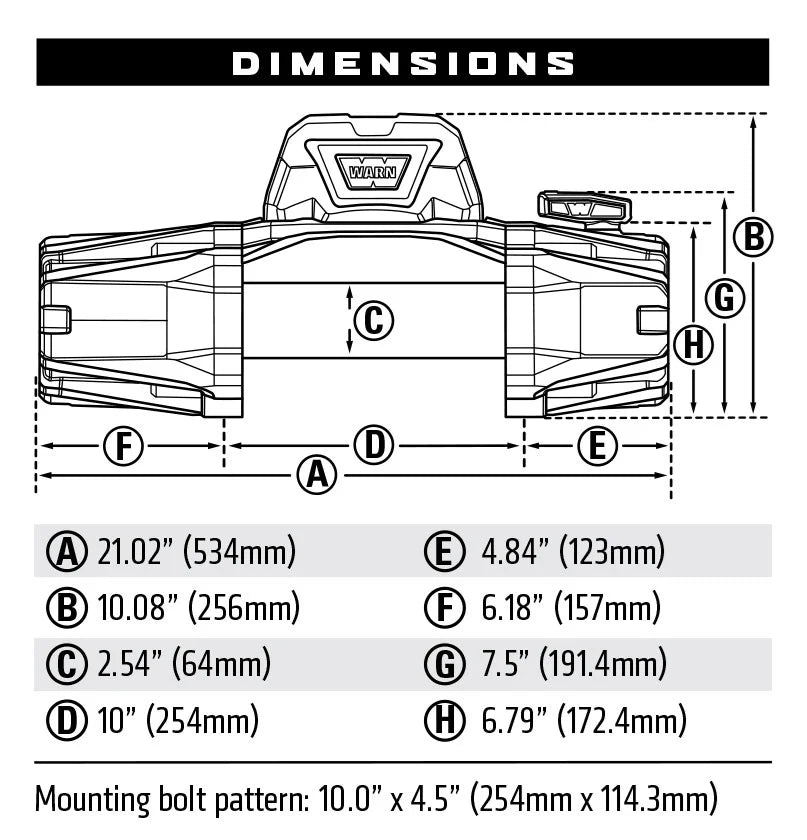

MOUNTING PATTERN LENGTH (IN)- 10 Inch
MOUNTING PATTERN WIDTH (IN)- 4-1/2 Inch
INCLUDES MOUNTING HARDWARE- Yes
COLOR- Black
DRUM MATERIAL- Steel
MAX LINE PULL/ LINE SPEED- 12,000 pounds / 4.0 feet per minute
MAX AMP DRAW/ LINE PULL- 396 Amps / 12,000 pounds
