The ZEON 8-S is a 12-volt electric winch. It requires a vehicle mount and has a pull capacity of 8,000 pounds. It comes with 100 feet synthetic rope.
Don't let the good looks fool you. We've packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 Pound pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
TYPE- Electric
MOUNT TYPE- Vehicle Mounted
RECOMMENDED USE- Vehicle Recovery
VOLTAGE- 12 Volt
ELECTRICAL CONTROL TYPE- Contactors
MOTOR TYPE- Series Wound
THERMAL SHUTOFF- No
DRIVE GEAR TYPE- Planetary
GEAR REDUCTION RATIO- 162:1
FREE SPOOLING- Yes
BRAKE TYPE- Mechanical Cone
LINE DIAMETER (IN)- 3/8 Inch
LINE LENGTH (FT)- 100 Feet
LINE MATERIAL- Synthetic
FAIRLEAD TYPE- Hawse
CONFORMS TO J706 STANDARDS- No
REMOTE TYPE- Handheld Remote Switch
MOUNTING HOLE QUANTITY- 4
OPERATION TYPE- Automatic

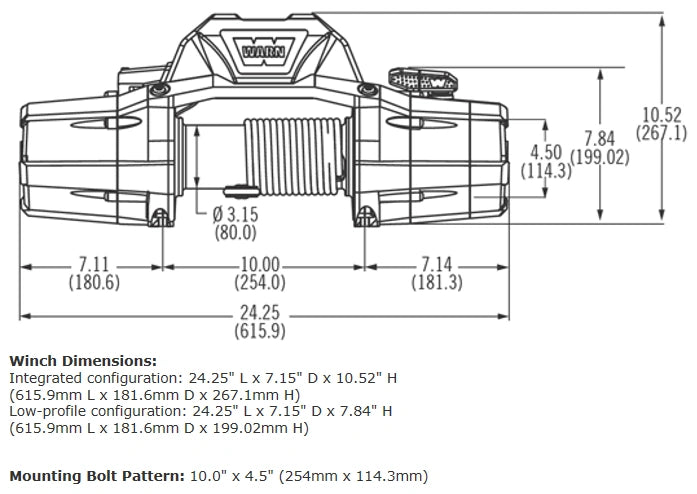

MOUNTING PATTERN LENGTH (IN)- 10 Inch
MOUNTING PATTERN WIDTH (IN)- 4-1/2 Inch
INCLUDES MOUNTING HARDWARE- No
COLOR- Black
MAX AMP DRAW/ LINE PULL- 413 Amp Draw/ 8000 Pound
MAX LINE PULL/ LINE SPEED- 8000 Pound/ 6.2 Feet Per Minute
